CVEAssert¶

CVEAssert is an LLVM compiler pass plugin that instruments programs by inserting runtime checks into functions identified by a CVE description. It consumes a CVE description encoded in JSON, which is parsed into an internal representation containing the affected source file, affected function, CWE identifier, and remediation strategy. Based on this description, CVEAssert selects and applies the appropriate sanitizer to each affected function. CVEAssert can optionally be linked with the libresolve runtime library to enforce stack and heap bounds protections. The pass is executed early in the compilation pipeline to allow LLVM's analysis and optimization framework to optimize the injected instrumentation.

Tip

For a step-by-step walkthrough of instrumenting a fix with CVEAssert, see the remediation example.

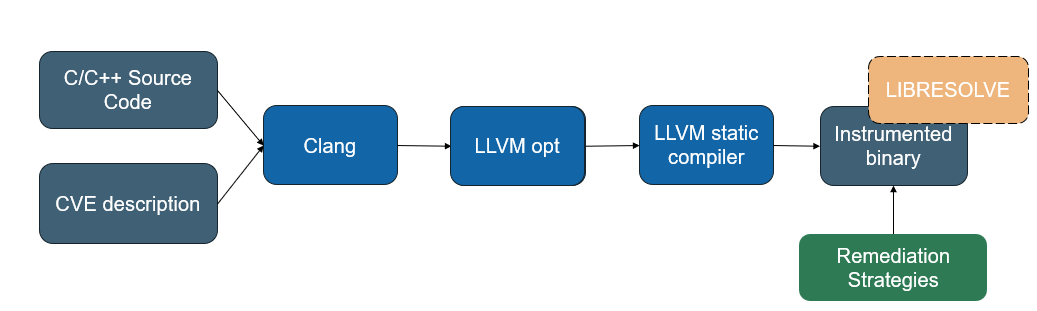

Architecture Diagram¶

CVEAssert pipeline

Types of Sanitizers¶

Type	Sanitizer
Arithmetic	Divide by Zero
Arithmetic	Integer Overflow
Memory	Heap OOB
Memory	Stack OOB
Memory	Free Nonheap
Memory	Null Pointer Deref
Other	Operation Masking

Directory Structure¶

.
├── ArithmeticSanitizer.cpp   - Arithmetic sanitizer
├── BoundsCheck.cpp           - Heap/Stack bounds check
├── CVEAssert.cpp             - Pass entry point
├── IRUtils.cpp               - LLVM-generated helper functions
├── NullPointerSanitizer.cpp  - Null pointer sanitizer
├── OperationMasking.cpp      - Operation masking sanitizer
└── Vulnerability.hpp         - Internal data structure to parse CVE description

Supported Sanitizers¶

Sanitizer	Behavior
Divide by Zero	Instruments division and remainder operations with runtime checks that remediate when the divisor is zero.
Integer Overflow	Instruments arithmetic operations using nsw/nuw and inserts overflow checks where undefined behavior may occur.
Heap Out-of-Bounds	Instruments heap loads, stores, and `getelementptr` instructions with runtime checks to enforce heap bounds.
Stack Out-of-Bounds	Instruments stack `alloca`, `load`, `store`, and `getelementptr` instructions with runtime checks to enforce stack bounds.
Null Pointer Dereference	Instruments pointer `load` and `store` instructions with runtime checks that check for null dereference.
Operation Masking	Replaces selected 'undesirable' function calls with guarded calls that validate operands before execution.
Free Nonheap Memory	Instruments calls to `free` with runtime checks that ensure argument is a heap-allocated pointer.

Note

The CVE description must include an undesirable-function field for the Operation Masking sanitizer to be applied. If this field is not present, Operation Masking is not enabled.

Supported Values¶

Here is a table of weakness identifiers and alternatives that can be used to activate specific sanitizers.

Common Mappings¶

Weakness Identifiers	Sanitizer
`190`	Integer Overflow
`369`	Divide by Zero
`476`	Null Pointer Dereference
`590`	Free Nonheap
`121`	Stack OOB
`122`	Heap OOB

Note

Stack and heap can be activated simultaneously with these weakness identifiers 123,125,131, 787. See "Additional Mappings" below for other supported ids.

Additional Mappings¶

CVEAssert recognizes a handful of other cwe-id values for compatibility purposes, see below mapping:

Weakness Identifiers	Sanitizer
`0`	Enables All Sanitizers
`123`	Write What Where
`119`	OOB
`787`	OOB Write
`125`	OOB Read
`131`	Incorrect Buffer Size
`1335`	Incorrect Bitwise Shift

Remediation Strategies¶

Remediation strategies define how sanitizers respond to detected errors encountered at runtime.

Remediation Strategy	Behavior
Continue	Invalid operations are ignored and return 0
Exit	Inserts `exit` function call with specified exit code
None	Does not perform remediation
Recover	Transfer control to a recovery handler using `longjmp`
Saturate (Sat)	Use saturating arithmetic
Widen	Widen potentially overflowing intermediate operations
Wrap	Use 2's complement arithmetic

Defaults¶

Arithmetic¶

The default remediation stategy for arithmetic sanitizers is Wrap, both when no strategy is specified and when an invalid sanitizer-strategy combination is encountered.

Note

If the divide by zero sanitizer is selected with the continue strategy, undefined results will return the dividend.

Memory¶

The default remediation strategy for memory sanitizers is Continue, both when no strategy is specified and when an invalid sanitizer-strategy combination is encountered.

Note

Unlike the other strategies, RECOVER is semi-automatic. This strategy requires the programmer to insert a jmp_buf construct within the program and insert additional logic to cause the program to call setjmp to transfer control to a recovery handler.

Instrumentation Examples¶

Arithmetic¶

#include <limits.h>
int add_user_input(int a, int b) {
  int sum = a + b;
  return sum;
}

int main(int argc, char **argv) {
  int x = INT_MAX;
  int y = 1;
  int result = add_user_input(x, y);
  return result;
}

The program initializes two variables x and y with the values INT_MAX and 1. When these variables are passed to the add_user_input function, the expression a+b can overflow when the mathematical result exceeds INT_MAX. In C, signed integer overflow results in undefined behavior.

When CVEAssert instruments this code, it inserts a check that detects signed integer overflow before performing the addition. If an overflow is detected, the compiler-generated remediation logic invokes the configured remediation strategy. In this example, the saturate strategy is applied, causing the result to be clamped to INT_MAX instead of overflowing.

// Integer overflow

#include <limits.h>
int add_user_input(int a, int b) {
  // -- Instrumentation inserted by CVEAssert --
  int sum;
  // Check for signed integer overflow before addition
  if (__builtin_add_overflow(a, b, &sum)) {
    // Overflow detected -> apply remediation
    sum = __resolve_add_saturate_int(a, b);
  }
  // If no overflow, sum contains correct result.
  return sum;
}

int main(int argc, char **argv) {
  int x = INT_MAX;
  int y = 1;
  int result = add_user_input(x, y); // result == INT_MAX (saturated)
  return result;
}

Memory¶

// Out-of-bounds Write
#include <stdlib.h>
void heap_oob_example() {
  int *buf = (int *)malloc(4 * sizeof(int));
  buf[0] = 10;
  buf[1] = 20;
  buf[2] = 30;
  buf[3] = 40;
  buf[4] = 50; // Heap out-of-bounds write
  free(buf);
}

This example demonstrates an out of bounds write in heap_oob_example. The program allocates space for four integers on the heap. Valid indices range from zero to three. The write to buffer[4] accesses memory beyond the allocated object and results in a heap out-of-bounds write.

When CVEAssert instruments this code, a bounds check is inserted before the store operation. At runtime libresolve retrieves the bounds metadata associated with buffer, and the instrumented code verifies that the target address falls within the valid allocation range. Since buffer[4] lies outside of the object bounds of the allocated object, the bounds check fails and the configured remediation strategy is invoked before the invalid write is performed.

#include <stdlib.h>

// Libresolve runtime interface (simplified)
typedef struct { void *base, void *limit} ShadowObjBounds;
extern ShadowObjBounds __resolve_get_bounds(void *addr);

void heap_oob_example() {
  // malloc replaced with __resolve_malloc hook
  int *buf = (int *)__resolve_malloc(4 * sizeof(int));
  buf[0] = 10;
  buf[1] = 20;
  buf[2] = 30;
  buf[3] = 40;

  // -- Instrumentation inserted by CVEAssert --
  ShadowObjBounds bounds = __resolve_get_bounds(buf);
  char *base_addr = (char*)&buf[4];
  size_t access_size = sizeof(int);
  if (base_addr + access_size - 1 >= bounds.limit) {
    // compiler-generated remediation handler
    __cve_remediation_handler();
  }
  buf[4] = 50; // Write occurs if check passes
  __resolve_free(buf);
}

Operation Masking¶

// Operation Masking Example
#include <string.h>
void process_user(const char *input) {
  char dest[8];
  // Copy user into fixed-sized buffer
  // Vulnerable: strcpy does not check
  // length before writing contents to
  // dest
  strcpy(dest, input);

  printf("Processed: %s\n", dest);
}

int main(int argc, void **argv) {
  process_user(argv[1]);
  return 0;
}

Operation masking vulnerabilities occur when an affected function passes arguments to another function, causing the callee to exhibit undefined behavior. Unlike memory and arithmetic vulnerabilities, unsafe behavior may not occur at the point where the invalid value is created, but rather when that value is later consumed by another operation. To mitigate these vulnerabilities, CVEAssert generates a sanitized version of the vulnerable function and redirects affected call sites to the sanitized implementation. Instead of performing the original operation, the sanitized function returns its first argument unchanged. This masks the unsafe operation while allowing program execution to continue without triggering the undefined behavior associated with the original function call. Returning the first argument preserves a valid input value while preventing execution of the vulnerable operation, allowing the program to continue with a predictable result.

The original program allocates a fixed buffer on the stack and uses the strcpy() function to copy the user input into the destination buffer. Because strcpy() does not verify the size of the destination buffer is large enough to hold the source string, an oversized input can overflow the buffer and result in undefined behavior.

When CVEAssert instruments this code, it generates a sanitized wrapper for strcpy() that returns the first argument rather than performing the copy operation. The compiler then redirects calls to strcpy() to the sanitized wrapper, preventing the unsafe operation from being executed.

#include <string.h>

// Sanitized wrapper generated by CVEAssert
// Operation masking: return first argument instead of copying.
char *strcpy_masked(char *dest, const char *src) {
  return dest;
}

void process_user(const char *input) {
  char dest[8];
  // Original call to strcpy is replaced by wrapper
  strcpy_masked(dest, input);
  printf("Processed: %s\n", dest);
}

int main(int argc, char **argv) {
  process_user(argv[0]);
  return 0;
}

Testing¶

To verify correct IR transformations and binary behavior, we developed a testing suite with regression testing. The suite contains testcases for each sanitizer and tests that the resulting binaries perform the intended behaviors with and without the remediation instrumentation. The testing suite can be found in resolve-cveassert/tests and the tests can be executed by calling make test.
